Outdoor and exhaust air separated by a thermal conductive plate to avoid cross contamination,Displacement ventilation, with incoming air pre-conditioned through heat exchange for energy conservation.
Would you like to start the interactive page right now?
OK
NO, thanks
ifD Process
-
Phase
I -
Phase
Ⅱ -
Phase
Ⅲ -
Phase
Ⅳ
-
Phase I
High voltage?(6KV-8KV) is applied to?generate corona discharges and negative ions. Negative irons collide with air molecules, thereby?ionizing?the latter and releasing additional irons which collide with further molecules—? creating an electron?avalanche.
-
Phase Ⅱ
When dispersed away from the corona discharge, negative ions are attracted by air molecules which become negatively charged and move towards the positive plate in an intense electric field.
-
Phase Ⅲ
Small particles are attracted to and obstruct the motion of negatively charged air molecules, hence acquiring negative charge.
-
Phase Ⅳ
Negatively charged particles are pulled to the positive plate and captured by the latter because of the powerful and polarized electrical field inside the ifD filter.

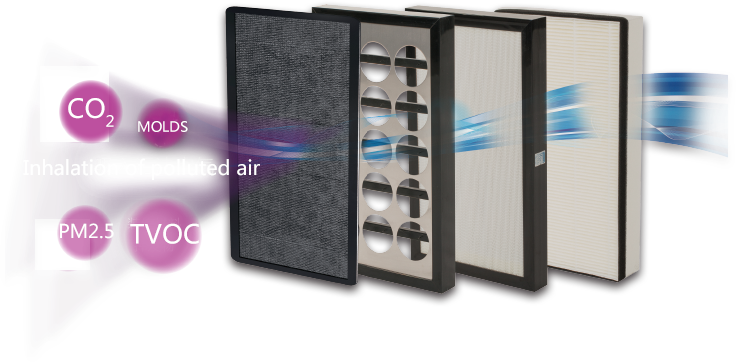

the Advantage of Multi-purification
Automated Control
Real-time monitoring and remote control through a mobile APP
Selecting settings at the touch of a button
(Optional)
Efficient Heat Recovery
Fire-retardant and mold-resistant, the plate heat exchanger, consisting of semipermeable membranes, achieves optimal heat exchange efficiency by virtue of low friction and pressure losses and a large surface area.

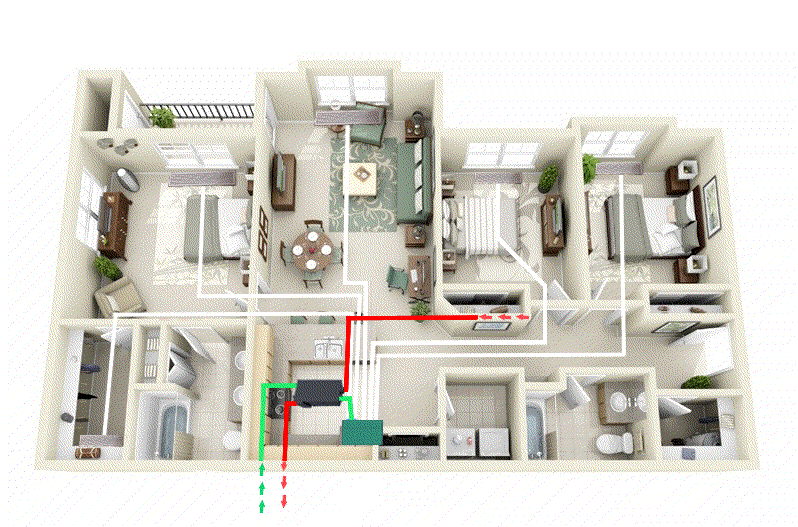

Air Purification System
-
Air Purification Unit
-
Return air vent
-
Exhaust vent
-
Vertical shaft for air supply
-
Removal of PM 2.5 during the first purification process
-
Fresh air inlet
-
Discharge of exhaust air
-
Floor diffuser
Core Technology
